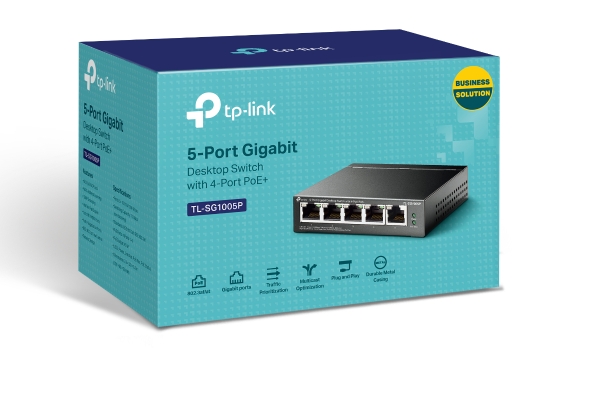

TP-Link 5-Port Unmanaged Desktop Gigabit PoE+ Switch TL-SG1005P

£70.94

5-Port Gigabit Desktop PoE Switch with 4-Port PoE+

  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for all PoE ports*
  • Requires no configuration and installation
SKU: TL-SG1005P Categories: , Tags: , , , , , , ,

Description

If you’re looking for this product to be installed in your home, our specialist installation team can help. Contact us online or visit our showroom to chat.

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

POWER OVER ETHERNET
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

OVERLOAD ARRANGEMNET
TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

PORT PRIORITY FUNCTION
Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.

EASY TO USE
TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

Additional information

Technical Specification

Hardware Features

Interface

5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 ohms STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 ohms STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 ohms STP (maximum 100m)
Fan Quantity

Fanless
External Power Supply

External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate

7.44 Mpps
PoE Ports (RJ45)

Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 65 W
Mac Address Table

2K
Jumbo Frame

16 KB
Switching Capacity

10 Gbps
Dimensions (W x D x H)

99.8 x 98 x 25 mm (3.9 x 3.9 x 1.0 in.)
Max Power Consumption

4.29 W (220/50 Hz. no PD connected)
74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation

14.63 BTU/h (no PD connected)
253.16 BTU/h (with 65 W PD connected)
Software Features

Advanced Features

Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method

Store-And-Forward
Other Specifications

Certification

FCC, CE, RoHS
Environment

Operating Temperature: 0°C – 40°C (32°F – 104°F)
Storage Temperature: -40°C – 70°C (-40°F – 158°F)
Operating Humidity: 10% – 90% RH non-condensing
Storage Humidity: 5% – 90% RH non-condensing
Package Contents

1 x TL-SG1005P
1 x Power Adapter
1 x Installation Guide
