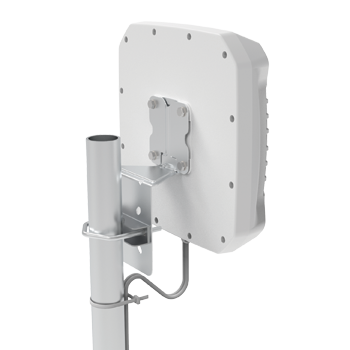

Poynting 5G 11dB High Gain Cross Polarised LTE MIMO Antenna


The Poynting 5G-XPOL-A0002 is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation “V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.

Poynting 5G-XPOL-A0002 Key Features

  • Exceptional over the main 4G/5G bands
  • High Gain for the antenna size
  • Wideband 2×2 MIMO 4G/5G antenna
  • Backwards compatible 2G/3G/4G/LTE antenna (5G Ready)
  • Two cross polarised antennas in one enclosure for optimal LTE performance
  • IP65 weather/dust and vandal resistant enclosure
  • 2-3dB higher over all the bands compared to “V2”
  • New 3400MHz-3800MHz, 5G band with 11dBi gain
  • Broadband, including the latest 3.5GHz bands
  • Wall or pole mountable
  • Lightweight & Rugged
  • High pattern consistency across bands for 4G/5G carrier aggregation

The XPOL-2-5G antenna includes the newer 3400 – 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! Our “V2” antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design.


Poynting 5G-XPOL-A0002 Technical Specifications

Application areas

  • Outdoor antenna for Fixed Wireless Access (FWA)
  • Consumer LTE/5G internet connectivity
  • Industrial & Commercial LTE/5G deployments
  • Urban and rural household reception enhancement
  • Agricultural & Farming LTE/5G data distribution
  • Power, Energy & Water telemetry access
  • Oil & Gas communication systems
  • Municipal & Government systems
  • Repeaters & coverage enhancement amplifiers

Electrical Specifications – Cellular

  • Frequency bands:
    – 698-960 MHz
    – 1710-2700 MHz
    – 3400-3800 MHz
  • Gain (max) Port 1 & 2: 11 dBi
  • VSWR Port 1 & 2: ≤1.5.1 Over 95% of the band
  • Feed power handling: 10 W
  • Input impedance: 50 Ohm (nominal)
  • Polarisation: ±45°
  • Coax cable loss:
    – 0.35 dB/m @ 900 MHz
    – 0.53 dB/m @ 2000 MHz
    – 0.6 dB/m @ 2500 MHz
  • DC Short: Path to ground

Mechanical Specifications

  • Product dimensions: 255mm x 255 mm x 80 mm
  • Packaged dimensions: 290 mm x 276mm x 98mm
  • Weight: 1,55 kg
  • Packaged weight: 1,98 kg
  • Radome material: UV Stable SAN Marine ASA
  • Radome colour: Brilliant White Pantone P 179-1 C
  • Mounting Type: Wall and pole mount

Coax Cable & Connector Type -Cellular

  • Cable length: 5m ±5%
  • Coax cable type: Twin HDF-195
  • Connector type: 2 x SMA (Male) With finger grips for easier connection

The coax cables & connectors are factory mounted to the antenna

Environmental Specifications, Certification & Approvals

  • Wind Survival: <120 km/h
  • Temperature Range (Operating): -40°C to +80°C
  • Environmental Conditions: Outdoor/Indoor
  • Water ingress protection ratio/standard: IP 65
  • Salt Spray: MIL-STD 810F/ASTM B117
  • Operating Relative Humidity: Up to 98%
  • Storage Humidity: 5% to 95% – non-condensing
  • Storage Temperature: -40°C to +80°C
  • Flammability Rating: UL 94-HB, ECE-R118.02 Certified cables
  • Impact resistance: IK 08
  • Product Safety & Environmental: Complies with CE, EN, CSA, RoHS and IEC standards, E-mark certified

Product Box Contents

  • Antenna: A-XPOL-0002-V3-01
  • Mounting bracket: Z-shaped mounting bracket
