Description

• Layer 2 smart switch
• (8) 1GbE PoE+, (8) 1GbE ports
• 150W PoE budget
• Limited lifetime warranty

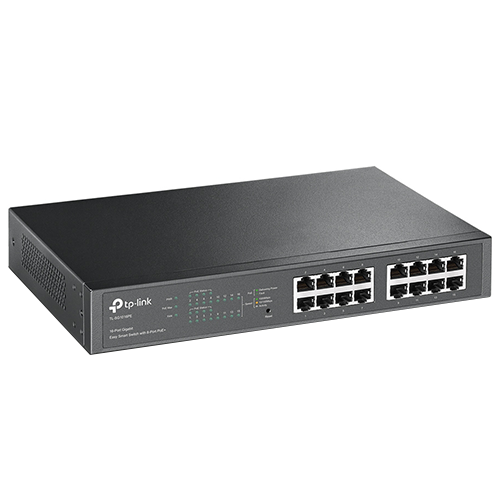

The TP-Link TL-SG1016PE 16-Port Smart GbE PoE+ Access Switch is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W, up to 30 W per port, the TL-SG1016PE powers more high-powered devices such as wireless access points (APs), IP cameras or IP phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves on power consumption, making it an eco-friendly solution for your business network.

Key Features

• Sixteen (16) 10/100/1000Mbps RJ45 ports.
• Equipped with eight (8) PoE+ supported ports to transfer data and power over a single cable.
• With a total PoE power budget of 150 W, up to 30 W per port.
• Works with IEEE 802.3af/at compliant devices, expanding home and office networks.
• Simple network set-up on top of plug-and-play connectivity.
• Web-based user interface and management utility simplify configuration.

PoE Support

The eight (8) ports of the TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). Electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets and you want to install devices such as APs, IP cameras or IP phones.

Overload Arrangement

The TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 150 W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function

Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 6 are using 30 W (maximum power per port is 30 W), the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system, this means Port 1, 2 ,3, and 4 will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6.

Easy To Use

The TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its desktop/rack mountable design, outstanding performance and quality, the TP-Link TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.

Standard Warranty: Limited Lifetime

Hardware Features

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

• 16 x 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

• 1

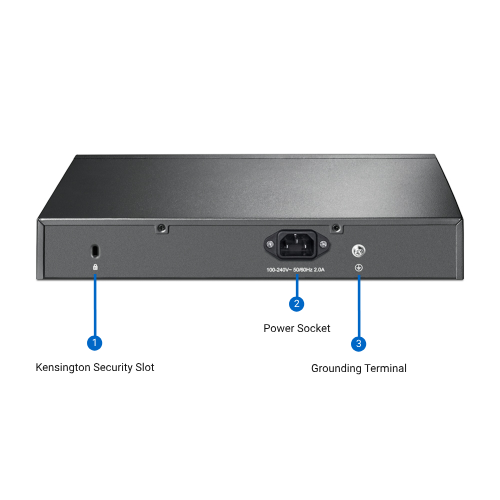

Physical Security Lock

• Yes

PoE Ports (RJ45)

• Standard: 802.3 af/at compliant
• PoE Ports: Port 1 to Port 8
• PoE Power Budget: 150 W

Dimensions (W x D x H)

• 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in.)

Mounting

• Rack Mountable/Desktop

Max Power Consumption

• 8.07 W (110 V/ 60 Hz with no PD connected)
• 177.67 W (110 V/60 Hz with 150 W PD connected)

Max Heat Dissipation

• 27.52 BTU/h (with no PD connected)
• 605.85 BTU/h (with 150 W PD connected)

Performance

Switching Capacity

• 32 Gbps

Packet Forwarding Rate

• 23.8 Mbps

MAC Address Table

• 8K

Packet Buffer Memory

• 4.1 Mbit

Jumbo Frame

• 10 KB

Software Features

Quality of Service

• Support Port-Based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control

L2 Features

• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention

VLAN

• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN

Management

• Web-based GUI
• Easy Smart Configuration Utility

Transmission Method

• Store-And-Forward

Other Specifications

Certification

• FCC, CE, RoHS

System Requirements

• Microsoft Windows for running Utility

Environment

• Operating Temperature: 0°C – 50°C (32°F – 122°F)
• Storage Temperature: -40°C – 70°C (-40°F – 158°F)
• Operating Humidity: 10% – 90% non-condensing
• Storage Humidity: 5% – 90% non-condensing

Package Contents

• TL-SG1016PE Switch
• Power Cord
• Installation Guide
• Resource CD
• Rackmount Kit
• Rubber Feet
