TP-Link EAP211 Bridge Kit Omada 5GHz Link Kit

£114.00

TP-Link EAP211-Bridge KIT Omada 5GHz Long-Range WiFi 5 Point-To-Point PtP Link Kit (867Mbps AC)

SKU: EAP211-Bridge KIT Category: Tags: , , , , , , , , , , , , Brand:

Description

The TP-Link EAP211-Bridge KIT Omada 5GHz Long-Range WiFi 5 Point-To-Point PtP Link Kit is a high-performance solution designed for long-range wireless transmission up to 1 km. With a data rate of up to 867 Mbps on the 5 GHz band, it is ideal for extending your network to remote locations.

Key Features

  • 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
  • Ideal for long-range wireless transmission up to 1 km.
  • Auto-pairing and agile LEDs for efficient deployment.
  • Three (3) Gigabit Ethernet ports for more high-speed IP camera connections.
  • Supports Omada SDN for remote and centralised management.
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
  • Supports Passive PoE for flexible deployment (adapter included).

Long-Range Transmission

The EAP211-Bridge KIT supports long-range wireless transmission up to 1 km, making it perfect for setting up networks in remote areas. Whether you need to extend your home network to a barn or provide WiFi to additional offices, this kit has you covered.

Auto-Pairing and Easy Deployment

Featuring auto-pairing and agile LEDs, the EAP211-Bridge KIT ensures efficient deployment. The auto-pairing feature reduces setup time, while the LED signal indicators help with easy alignment during installation.

Wider Beamwidth for Wider Deployment

One central link covers more distributed APs and cameras, eliminating the need for multiple central APs. The EAP211-Bridge KIT covers up to 70° beamwidth.

Weatherproof Design

With an IP65 weatherproof enclosure and 6kV lightning protection, the EAP211-Bridge KIT is built to withstand harsh outdoor conditions. It operates reliably in temperatures ranging from -40°C to 70°C, ensuring all-weather suitability.

Flexible Deployment Options

The EAP211-Bridge KIT supports Passive PoE for flexible deployment (adapter included). It also features three Gigabit Ethernet ports for connecting more high-speed IP cameras and other devices. For wall mounting, a bracket is required (sold separately).

Standalone or Omada SDN Mode

Flexible dual modes allow for batch deployment and remote management via the Omada app or Web UI. Standalone mode is ideal for simple setups for individual scenarios. Omada bridges integrate with Omada SDN for centralised management and remote access, enabling faster batch deployment of multiple bridge pairs, using batch provisioning.

SPECIFICATION

Interface

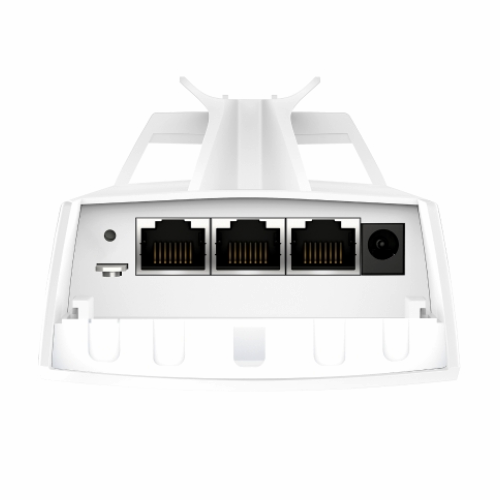

  • 3 x Gigabit Ethernet Ports

Button

  • Reset

Power Supply

  • 12V DC / 24V Passive PoE (Passive PoE adapter included.)

Power Consumption

  • 11.5W

Dimensions (W x D x H)

  • 79 x 60 x 224 mm (3.1 x 2.4 x 8.8 in.)

Antenna Type

  • Internal 2×2 Dual-polarised directional MIMO antennas
  • 5 GHz: 7.0 dBi
  • Horizontal: 70°; Vertical: 70°

Weatherproof Enclosure

  • IP65

Mounting

  • Pole Mounting (Accessories included)

Wireless Features

Coverage

  • 1000 m (3280 ft.)

Wireless Standards

  • IEEE 802.11 a/b/g/n/ac

Frequency

  • 5 GHz

Signal Rate

  • 5 GHz: Up to 867 Mbps

Wireless Functions

  • Mesh
  • MU-MIMO: 5G 2×2 MU-MIMO DL
  • Load Balance
  • Seamless Roaming (802.11r)
  • Beamforming
  • Airtime Fairness
  • Multiple SSIDs: 8
  • Wireless Statistics
  • Wireless Schedule
  • Reboot Schedule
  • RADIUS Accounting
  • MAC Authentication
  • Static IP/Dynamic IP

Wireless Security

  • VLAN
  • Access Control
  • Rogue AP Detection
  • Captive Portal Authentication
  • Maximum number of MAC Filter: 4,000
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise

Transmission Power

  • CE:
    • < 23dBm (5 GHz, band 1/2, EIRP)
    • < 30dBm (5 GHz band3, EIRP)
  • FCC:
    • < 22dBm (5 GHz band1/4)

Management

Omada App

  • Yes

Restore & Backup

  • Yes

Firmware update via Web

  • Yes

NTP

  • Yes

Centralised Management

  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller

Cloud Access

  • Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

LED ON/OFF Control

  • Yes

Management MAC Access Control

  • Yes

SNMP

  • v1, v2c, v3

SSH

  • Yes

Web-based Management

  • Yes

Other Specifications

Certification

  • CE, FCC, RoHS

Environment

  • Operating Temperature: -40°C – 70°C (-40°F – 158°F)
  • Storage Temperature: -40°C – 70 °C (-40 °F–158 °F)
  • Operating Humidity: 10% – 90% non-condensing
  • Storage Humidity: 5% – 90% non-condensing

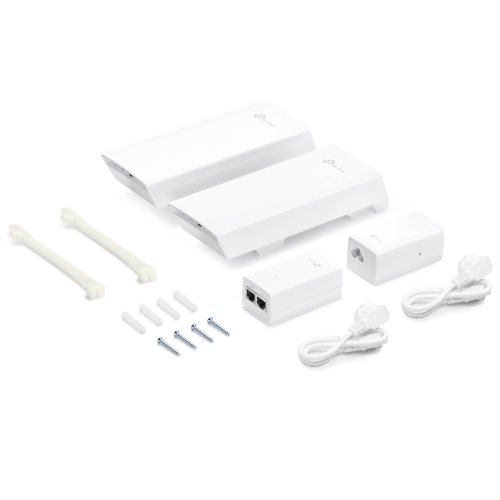

Package Contents

  • EAP211-Bridge KIT
  • Passive PoE Adapter
  • Power Cord
  • Installation Guide
  • Mounting Kit
