Description
The Ruijie Reyee RG-EST350G is a powerful, long-range wireless bridge designed to deliver fast, stable connectivity where traditional cabling simply isn’t practical. Ideal for linking buildings, CCTV systems, and remote network locations, this professional-grade solution provides seamless high-speed communication across distances of up to 5km.
Built on reliable Wi-Fi 5 technology, the RG-EST350G supports data rates of up to 867Mbps, ensuring smooth transmission for bandwidth-heavy applications such as HD surveillance, VoIP, and network backhaul.
Designed with installers in mind, the system comes pre-paired for true plug-and-play deployment, significantly reducing setup time on site. Its rugged, IP55-rated enclosure and wide operating temperature range make it perfectly suited for outdoor environments across residential, commercial, and industrial projects.
With multiple Gigabit Ethernet ports and flexible power options including PoE, the RG-EST350G integrates easily into new or existing networks while offering the flexibility to power connected devices such as IP cameras directly.
Whether you’re extending a network between buildings, deploying a large-scale CCTV system, or delivering connectivity to hard-to-reach areas, the RG-EST350G provides a reliable, cost-effective alternative to trenching and cabling.
Key Features:
- Up to 5km wireless transmission range
- Three GbE ports
- High-speed performance up to 867Mbps
- Pre-configured pairing for quick installation
- Durable, weatherproof outdoor design (IP55 rated)
- Multiple Gigabit ports with PoE support
- One-Touch Pairing for PTMP mode
- Ideal for CCTV, inter-building links, and remote connectivity
Hardware
Radio Design
- 5 GHz dual-stream
- 2.4 GHz single-stream
Protocols and Standards
- 5 GHz: 802.11ac/n/a
- 2.4 GHz: 802.11b/g/n
WiFi Standard
- WiFi 5
Spatial Streams
- 5 GHz dual-stream, 2×2 MIMO
- 2.4 GHz single-stream
Channel Width
- 5 GHz: Auto/20/40/80 MHz
- 2.4 GHz: Auto/20/40 MHz
Receiver Sensitivity
- 11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
- 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65dBm@MCS15
- 11ac: -86 dBm (MCS0), -63 dBm (MCS9)
Nominal Receive Sensitivity
- 20 MHz Channel: -91 dBm (MCS0) to -57 dBm (MCS9)
- 40 MHz Channel: -83 dBm (MCS0) to -57 dBm (MCS9)
- 80 MHz Channel: -76 dBm (MCS0) to -51 dBm (MCS9)
Modulation Levels (Adaptive)
- MCS0 (BPSK) to MCS9 (256QAM)
WiFi Protocols
- 5 GHz: WiFi 5 (IEEE 802.11ac)
- 2.4 GHz: WiFi 4 (IEEE 802.11n)
Wireless Data Rate
- 1017 Mbps
- 5 GHz: 867 Mbps
- 2.4 GHz: 150 Mbps
Frequency Bands
- 5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
- 2.4 GHz: 802.11b/g/n: 2.4000 GHz to 2.483 GHz
Max. Transmit Power
- 5 GHz: 26 dBm
- 2.4 GHz: 20 dBm
Surge Protection
- Common mode: ±4 kV
- Differential mode: ±2 kV
Dimensions (W x D x H)
- Without bracket: 240 x 133 x 108 mm (9.45 x 5.24 x 4.25 in.)
Weight
- Net Weight: 0.73 kg (1.61 lbs.)
- Gross Weight: 2.55 kg (5.62 lbs.)

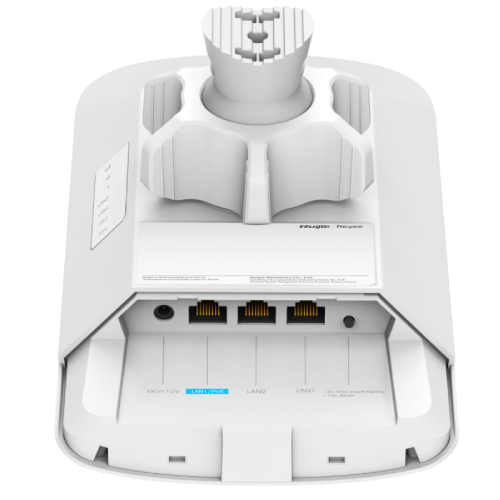

Number of Fixed LAN Ports
- 3
Max. LAN Port Rate
- 1000 Mbps
Number of 10/100/1000BASE-T Ports
- 3
Reset
- Yes
Status LED
- Yes
Power Supply
- 12 V DC
- 24 V passive PoE
- 802.3af/at
Local Power Supply
- Yes
PoE Out
- No
Antenna Type
- Built-in antenna, horizontal 31°/vertical 14°
Hardware Button
- 1 x reset button
DC Power Connector Size
- Inner Diameter: 2.10 ± 0.1 mm (0.083 ± 0.004 in.)
- Outer Diameter: 5.50 ± 0.1 mm (0.217 ± 0.004 in.)
- Depth: 10.0 ± 0.5 mm (0.394 ± 0.020 in.)
DC Voltage/Current
- 12 V/1.2 A
- 24 V/0.6 A
LEDs
- 1 x system LED
- 3 x port LEDs
- 3 x signal strength LEDs
Antenna Gain
- 5 GHz: 16 dBi
- 2.4 GHz: 2 dBi
Power Consumption
- < 12W
IP Rating
- IP55
Colour
- Elegant white
Temperature
- Operating Temperature: – 30°C to +65°C (–22°F to +149°F)
- Storage Temperature: – 40°C to +85°C (–22ºF to +185ºF)
Operating and Storage Humidity
- 5% RH to 95% RH (non-condensing)
MTBF
- > 400000 hours
Working Distance
- 5 km
Bridging Performance
- 230 Mbps/1 km (HT40)
- 200 Mbps/3 km (HT40)
- 150 Mbps/5 km (HT40)
RSSI (dBm)
- – 54 dBm/1 km
- – 62 dBm/3 km
- – 66 dBm/5 km
Throughput and Camera Limits
- 3 MP
- 50/1 km
- 45/3 km
- 20/5 km
- 4 to 5 MP
- 30/1 km
- 25/3 km
- 12/5 km
- 6 to 7 MP
- 20/1 km
- 13/3 km
- 8/5 km
- 7 to 8 MP
- 15/1 km
- 12/3 km
- 6/5 km
Management Radio
- 2.412 GHz to 2.472 GHz
Number of PtMP Links
- 5
ESD Protection
- ESD tolerance: contact discharge=8 kV, air discharge=15 kV
Certification
- CE
Software Features
Operating Mode
- BaseStation/CPE
TDMA
- Fixed Mode/Flexible Mode
WLAN Security
- WPA2-PSK
Management SSID
- @Ruijie-bxxxx
Management SSID for Internet Access
- Yes
SSID Hiding
- Yes
Spectrum Scan
- Yes
Antenna Alignment
- Yes
One-Touch Pairing
- Yes
WMM
- Yes
Storm Control
- Yes
VLAN Packet Transmit
- Yes
DHCP Server
- Yes
DHCP Client
- Yes
Network Diagnosis
- Ping/Traceroute/DNS Lookup
Time and Date
- Yes
Firmware Upgrade
- Yes
Backup/Restore
- Yes
Cloud Management
- Yes
Power Configuration
- Yes
Country/Region Code
- Yes
Remote Restart
- Yes
SON (Self-organising Networking with all Reyee Devices)
- Yes
SNMP
- Yes
Link Aggregation
- No
Bridge Speed Test
- Yes
Max. Number of Devices on a SON
- 200
Ping
- Yes
Traceroute
- Yes
AI Heatmap
- Yes

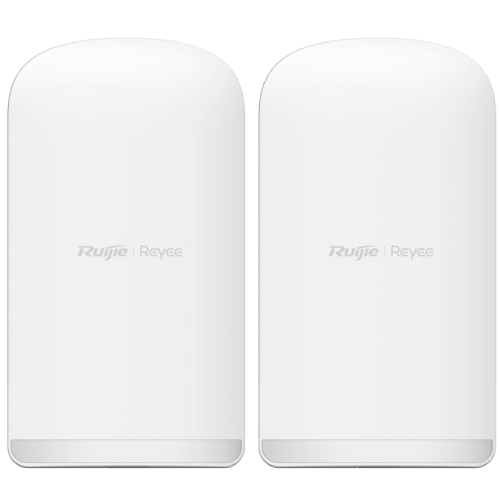

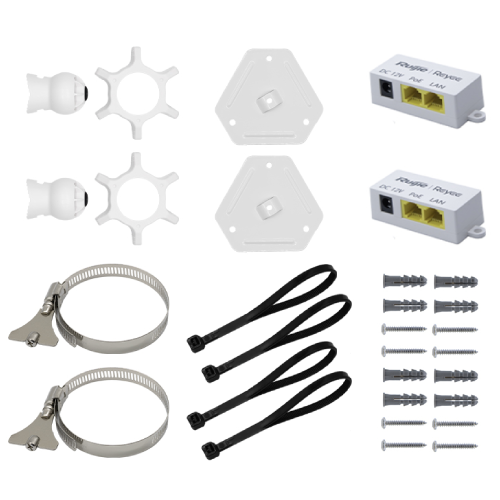

Package Contents
- 1 x RG-EST350G (Network Video Recorder End)
- 1 x RG-EST350G (Camera End)
- 2 x 24 V DC/0.6 A Power Adapters
- 2 x Universal Joints
- 2 x Universal Joint Nuts
- 2 x Hose Clamps
- 2 x Mounting Brackets
- 2 x 1000 Mbps Passive PoE Injectors
- 1 x Product Manual
- 1 x Warranty Card
- 6 x Wall Anchors
- 8 x Phillips Pan Head Screws (ST4.2×19)
