IP video intercom Bundle with 1 button call

£345.00

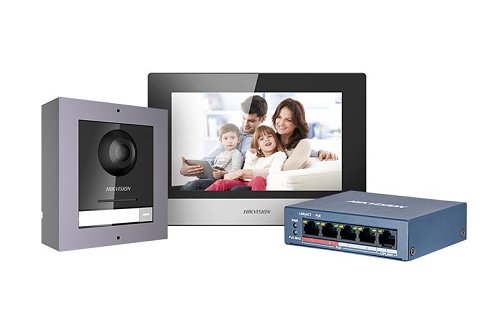

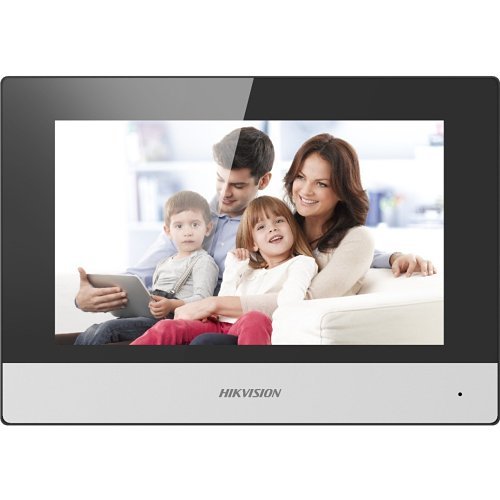

DS-KIS602 is an intercom bundle containing 3 products: a modular door station, an indoor station, and a portable switch that supports Power Over Ethernet(PoE) to provide powers to the products. This combo package will definitely suits your needs for a small scale intercom system.

Description

If you’re looking for this product to be installed in your home, our specialist installation team can help. Contact us online or visit our showroom to chat.

Get in touch to arrange a fitting and get 10% off the cost of this intercom!



  • System Parameters
  • ProcessorEmbedded MCU Processor
  • Operation SystemEmbedded Linux Operation System
  • Display Parameters
  • Display Resolution1024 × 600
  • Display Screen7-inch colorful TFT screen
  • Audio Parameters
  • Audio Compression Rate64 Kbps
  • Audio Compression StandardG.711 U
  • Audio InputBuilt-in omnidirectional microphone
  • Audio OutputBuilt-in loudspeaker
  • Audio QualityNoise suppression and echo cancellation
  • Network Parameters
  • Ethernet10/100 Mbps Self-Adaptive Ethernet
  • Network ProtocolTCP/IP, RTSP
  • Device Interfaces
  • I/O Input4
  • I/O Output2
  • General
  • Power Supply12 VDC/PoE ( IEEE 802.3af)
  • Power Consumption≤10 W
  • Working Temperature-40° C to +60° C (-40° F to 140° F)
  • Working Humidity10% to 95%
  • Dimension (L X W X D)200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
  • 683 g (with packaging)

    355 g (without packaging)

  • IP Protection LevelIP65
  • Memory128 MB
  • Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
