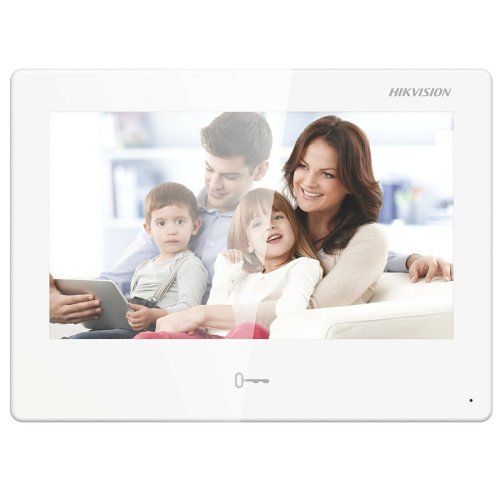

Video Intercom Network Indoor Station

£245.00

• 7 inch colorful touch screen with resolution 1024 x 600

• UI V2.0 User friendly design

• Plug & Play

• Standard PoE.

. Easy installation

• Receives video call and unlocks on mobile App anytime anywhere

• Supports link to Hikvision devices to build a management centre

DS-KH9310-WTE1B data sheet



Description

  • System Parameters
  • Operating SystemEmbedded Android operation system
  • ROM8 GB Emmc
  • RAM2 GB
  • CPUEmbedded processor
  • Display Parameters
  • Screen Size7-inch
  • Operation MethodCapacitive touch screen
  • TypeColorful TFT
  • Resolution1024 × 600
  • Video Parameters
  • Lens/
  • Resolution/
  • FOV/
  • WDR/
  • Video Compression Standard/
  • Focal Length/
  • Audio Parameters
  • Audio Compression StandardG.711 U, G.711 A
  • Audio InputBuilt-in omnidirectional microphone
  • Audio OutputBuilt-in loudspeaker
  • Audio Compression Bitrate64 Kbps
  • Audio QualityNoise suppression and echo cancellation
  • Volume AdjustmentAdjustable
  • Capacity
  • Event Capacity200
  • Notice Capacity16
  • Linked Indoor Extensions Capacity5
  • Network Parameters
  • Communication ProtocolTCP/IP, SIP, RTSP
  • Wired NetworkSupport
  • Wi-Fi StandardWi-Fi 802.11 b/g/n
  • Bluetooth Version/
  • 3G/4G Standard/
  • Zigbee/
  • Device Interfaces
  • Alarm Input8
  • Network Interface1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER/
  • RS-4851
  • TF CardReserved
  • Alarm Output1 relay output, 1 alarm output
  • Power Interface1
  • General
  • Button/
  • InstallationSurface mounting
  • Indicator/
  • Without package: 419.3 g

    With package: 694 g

  • Protective Level/
  • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity10% to 90%
  • Dimensions187 mm × 137 mm × 25.7 mm (7.36″ × 5.39″ × 1.01″)
  • Battery/
  • Power Supply

    IEEE802.3af, standard PoE

    12 VDC, 1 A

  • Application EnvironmentIndoor
  • Power Consumption≤ 8 W
