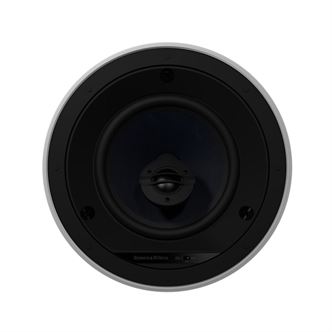

CCM663 600 Series 6″ In Ceiling Speaker (Pair)

£650.00

CCM663: Performance Series Pair

Our Performance Series delivers fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the loudspeakers used in some of the world’s most advanced recording studios

See nothing, hear everything

Would you like to have these speakers professional by our fantastic Audio Installation team?

Get in touch to arrange an installation by us and get a 10% discount off these speakers!

Description

The CCM663 is a true high performance ceiling-mount speaker.

The tweeter has a 25mm (1in) aluminium dome and its housing pivots for adjustable off-axis treble response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass, and a three-position EQ switch for a better off-axis response.

The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Additional information

Technical Specification

Description: 2-way in-ceiling system
Drive Units: 1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter
1x ø150mm (6in) blue Aramid Fibre cone bass/midrange
Frequency Range (-6dB): 45Hz – 50kHz
Recommended Amplifier Power: 25 – 130W
Sensitivity: 88 dB
Nominal Impedance: 8Ω (minimum 4.5Ω)
Frame Diameter: 240mm
Cut-out diameter: 202mm
Depth Behind Surface: 133mm
Protrusion: 4mm
Pre-Mounting Kit: PMKC6
Back Box: BB 6C
