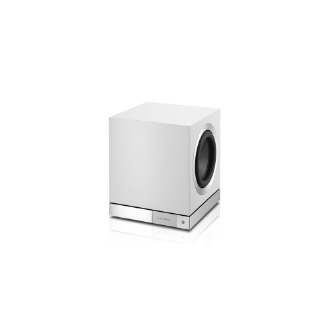

Bowers & Wilkins DB3D 8″ Subwoofer White


DB3D: Subwoofer Series


Despite its compact dimensions, DB3D delivers astonishingly powerful, controlled bass thanks to its twin 8in Aerofoil™ drivers, 1000 watt amplifier and digital signal processing.

Power packed
DB3D’s tight, powerful and dramatic bass and compact size make it the perfect match for the 804 D3 and 805 D3 speakers.

The perfect match
DB3D’s ultra-rigid low-resistance enclosure comes in three finishes to match the 800 Series Diamond and 700 Series loudspeakers.


More bass, less space
Compact model packs a mighty punch. Controllable, dramatic bass from a subwoofer so small it fits almost anywhere: DB3D is a space-saving high-performance design.

Nimble and powerful

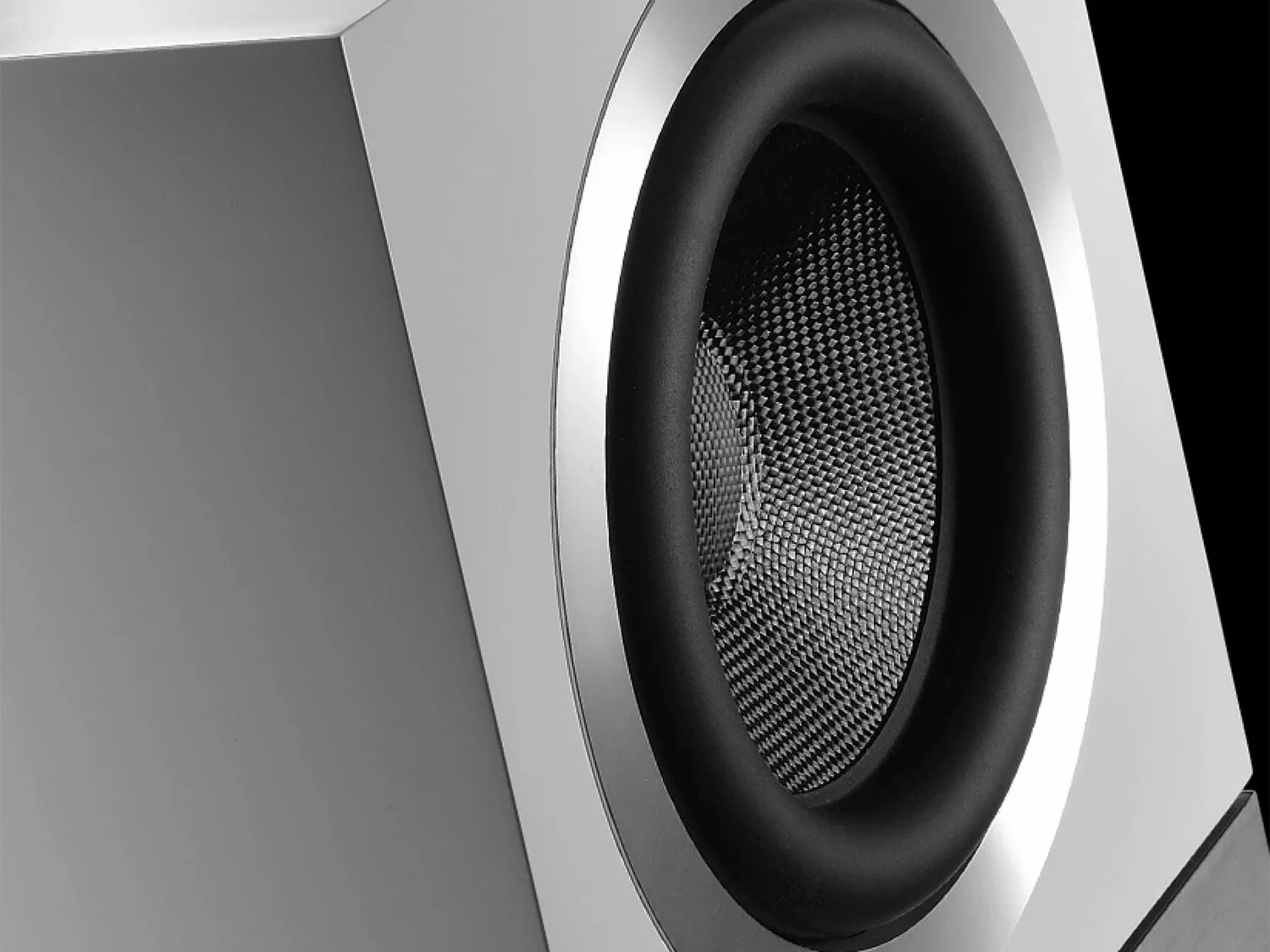

Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped variable thickness Aerofoil™ cone.





A question of balance

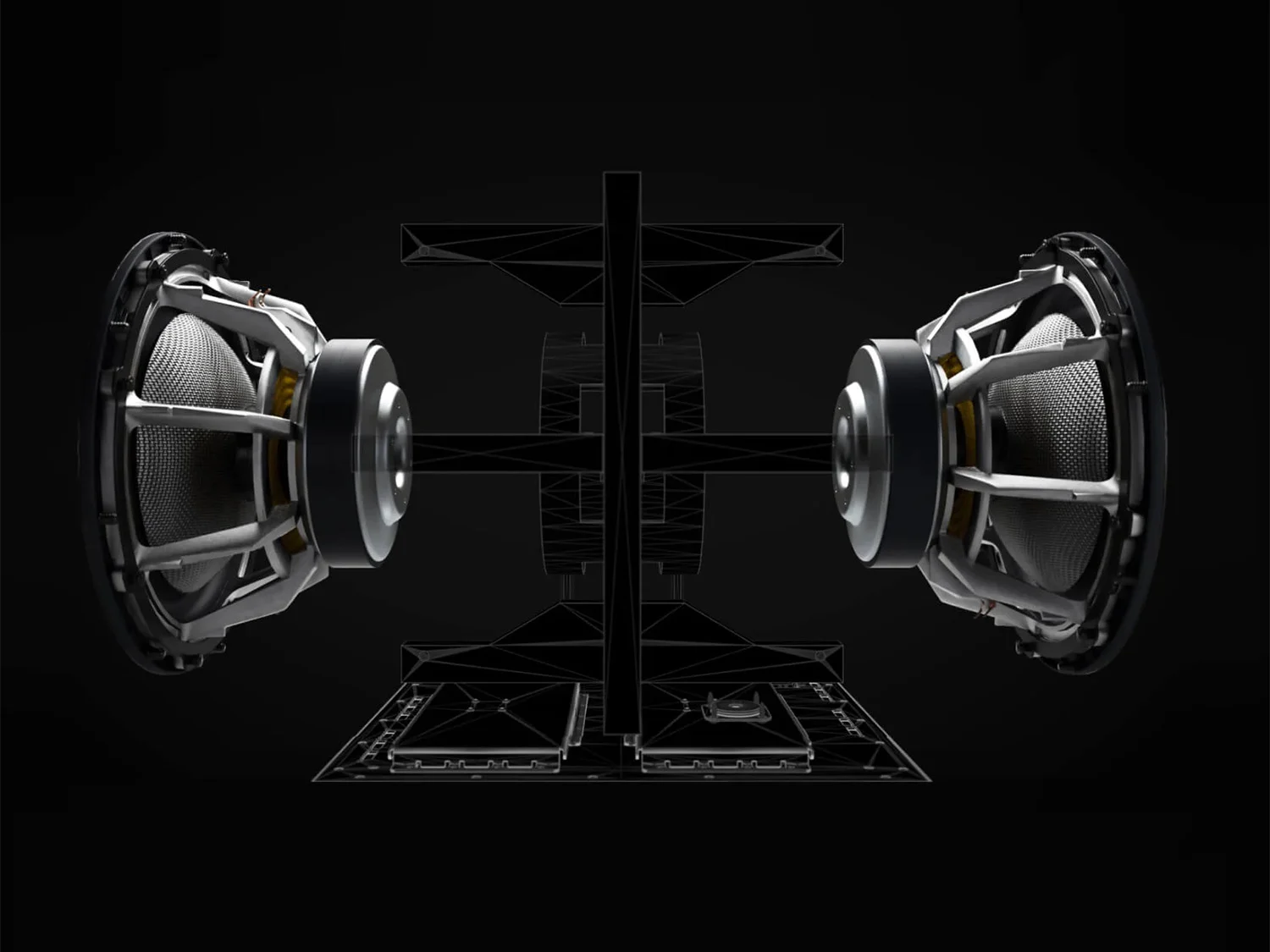

The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.

The digital advantage
Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.

Take control
By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximise your sound quality


Series Manual


Description: DB series subwoofer
Technical Features: 1000w Class D Hypex amplifier
2 x 200mm (8in) Aerofoil™ cone drive units in a balanced configuration
Digital preamplifier with Dynamic EQ
App-based set-up and BT-LE control
Drive Units: 2 x 200mm (8in) Aerofoil™ cone drive units in a balanced configuration
Frequency Range: 8.5Hz – 500Hz
Frequency Response -3dB (centred on level at 100Hz): 10Hz – 350Hz
Maximum Power Output: 1000W
Inputs: 2 x XLR
2 x RCA
2 x 3.5mm 12V trigger
RS232 9-pin D connector
Dimensions: Height: 360mm
Width: 320mm
Depth 300mm
Net weight: 25kg
Colour: Satin white
Manufacturer’s Warranty*: 2 years
