Description

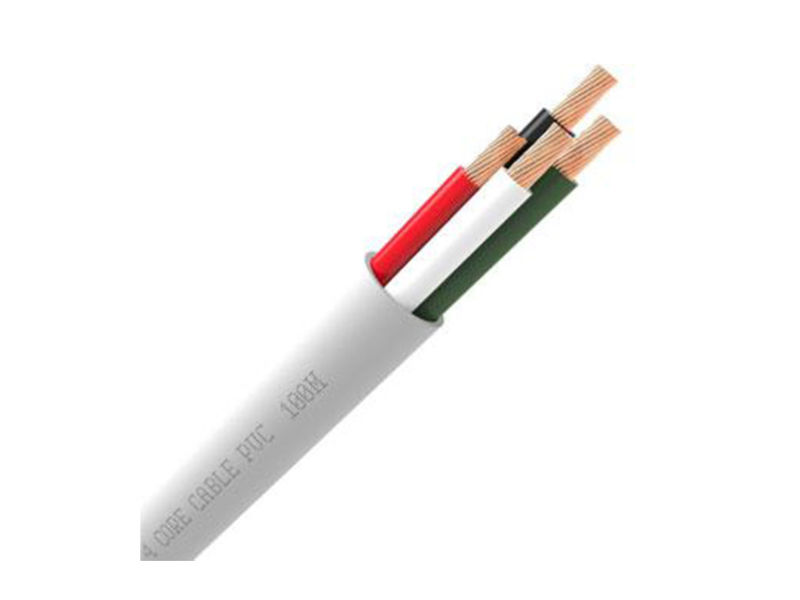

QX16/2 and QX16/4 PVC are high performance and exceptional quality installation speaker cables with a flame retardant PVC outer sheath.
They are designed to deliver excellent levels of performance vs. cost in all multi-room and home cinema installations where low smoke zero halogen (LSZH) cables are not specified.
Features:
Large cross-sectional area of high purity copper conductors
Ensures good performance levels are maintained even on longer runs
Sequentially metre marked – counting down so you always know what you have left on the reel or in the box
PVC Flame retardant high performance outer jacket
Colour-coded conductor sheaths
Fully tested flame retardant design meets and exceeds IEC60332-1
Full test report available on request
RoHS2 Compliant
Specifications:
Conductor Size: 16 AWG
Conductor Construction: 30/0.26
Conductor Resistance: 13.3 Ω/km
Conductor Cross-sectional Area: 1.5 mm2
Insulation Colour: 16/2 Red, Black: 16/4 Red, Black, White, Green
Dielectric Strength: 600 kV AC
Jacket Material: PVC
Outside Diameter: 16/2 – 6.20 mm 16/4 – 7.20 mm
Jacket Colour: White
Weight: 16/2 – 58 kg/km 16/4 – 98 kg/km
