Description
If you’re looking for this product to be installed in your home, our specialist installation team can help. Contact us online or visit our showroom to chat.
Get in touch to arrange a fitting and get 10% off the cost of these speakers!
Built to keep on playing, whether in the garden, on the patio or round the pool.

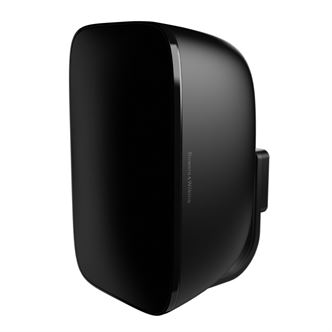

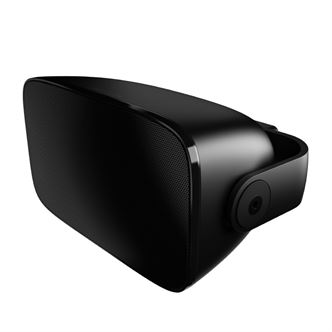

This Bowers & Wilkins architectural monitor is designed to be used anywhere: it’s perfect for use around the pool or mounted outdoors year-round, thanks to its weather resistance.
Great sound anywhere
The easy-install bracket allows AM-1 to be mounted vertically or horizontally, for total flexibility of installation.
Better bass, sealed tight
AM-1 needs a sealed enclosure to shrug off the rain and splashes, but that’s not great for solid, powerful bass. So Bowers & Wilkins engineers designed this clever auxiliary bass radiator to give extra low-end punch from a compact enclosures.
Sound where you want it
The AM-1 is small, yet tough and flexible, so the combination of a slender wall-bracket, a clever one-plug mounting system and 220 degree rotation means we can deliver your music wherever you want it – indoors or out.
TECHNICAL SPECIFICATION
| Technical Features: | Nautilus™ tube loaded aluminium dome tweeter Glassfibre cone bass/midrange Auxiliary Bass Radiator (ABR) |
| Description: | 2-way system with Auxiliary Bass Radiator (ABR) |
| Drive Units: | 1x ø25mm (1in) aluminium dome high-frequency 1x ø130mm (5in) glassfibre cone bass/midrange |
| Frequency Range: | -6dB at 46Hz and 50kHz (wall mounted) |
| Frequency Response: | 51Hz – 22kHz on reference axis (wall mounted) |
| Sensitivity: | 86dB |
| Total Harmonic Distortion: | < 1% 200Hz – 20kHz (86dB, 1m) |
| Nominal Impedance: | 8Ω (5.2 Ω min) |
| Recommended Amplifier Power: | 20W – 100W into 8Ω on unclipped programme |
| Dimensions (includes wall bracket): | 310mm (H) x 180mm (W) x 210mm (D) |
| Net Weight: | 4kg |
| Operating Temperature | -10°C to 55°C |
