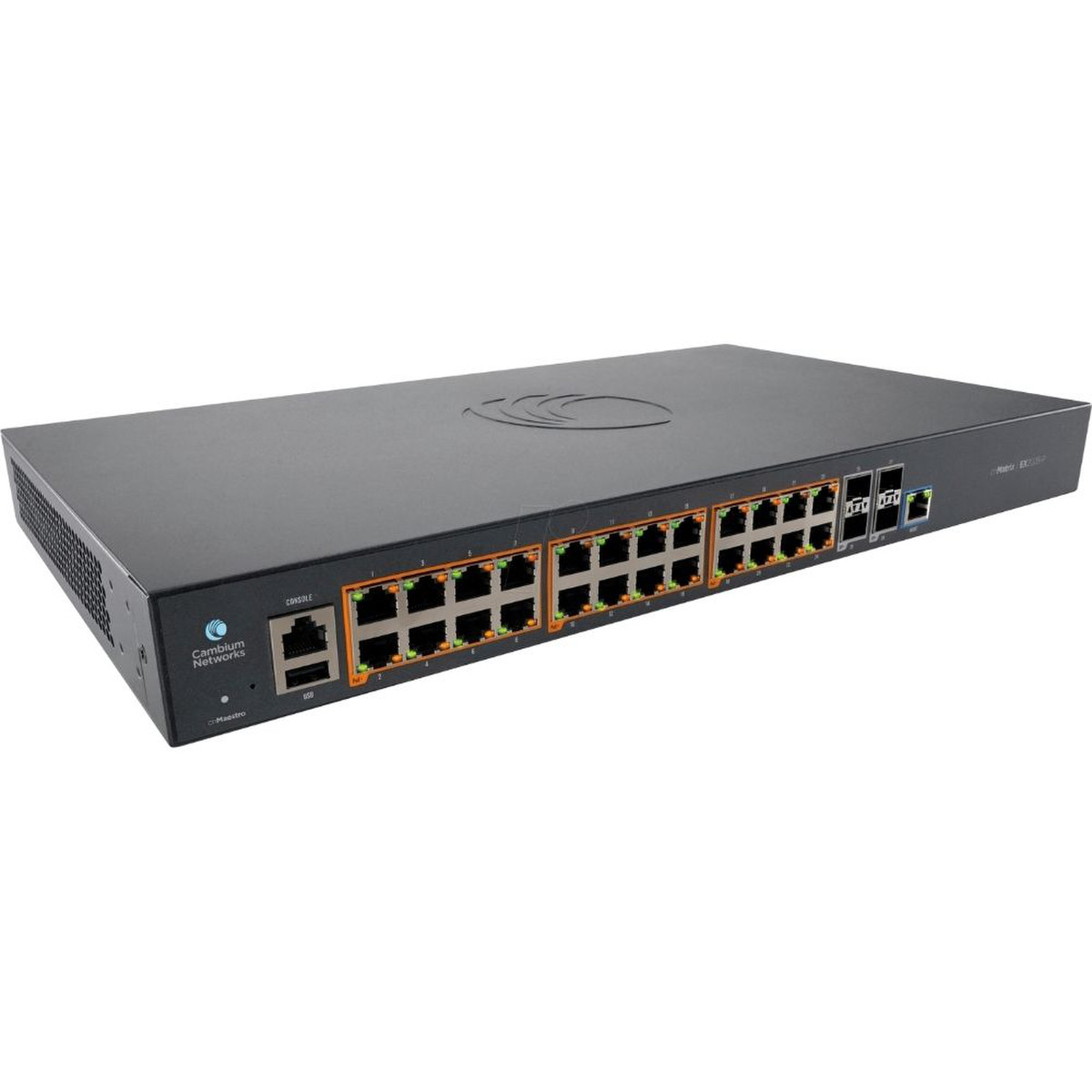

Cambium cnMatrix EX2028P 24 PORT 400W POE Switch

£1,620.00

Cambium cnMatrix EX2028-P 24 Port 400W POE, L2 and L3 switch 24X1G 4XSFP+

Description

The cnMatrix series of fully managed switches from Cambium delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The CAM-EX2028P offers flexibility with SFP+ (10Gbps) or SFP (1Gbps) uplink ports

The cnMatrix series of fully managed switches from Cambium delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The CAM-EX2028P offers flexibility with SFP+ (10Gbps) or SFP (1Gbps) uplink ports.

This cnMatrix™ EX2028-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich and high quality unified wired/ wireless enterprise grade network.

cnMaestro™ offers zero touch deployment of switches making installation easy. It effectively eliminates manual configuration data entry errors. With zero touch configuration and network access policies, this switch addresses challenges in enterprise networks. Cambium Networks Policy Based Automation (PBA) fully automates these features to optimise network performance. Devices can be added, moved and removed quickly. Automatic detection enables plug and play, whereby reducing errors and costly network downtime.

The EX2028P’s programable device profiling, automatic port configuration and network segmentation improves security posture of the network. With Auto Policy wipe, enforcement with automatic clean up upon device disconnections.

Features

  • Cloud Management providing easy and simple, free cloud or on premise management with cnMaestro™ or XMS
  • Features rich and high quality unified wired or wireless enterprise grade network
  • Policy Based Automation (PBA) eliminates manual configuration during adds, moves and changes of network devices
  • Zero touch deployment of switches makes installation easy
  • Auto Policy Wipe
  • Offering affordable, high quality and enterprise Layer 2 capabilities with enhanced access security
  • Non blocking, line rate architecture with fully featured L2/L3 switching
  • Deliver power savings with several models offering fanless operation

Cambium_Networks_data_sheet_cnMatrix_EX2000_series_switches_

If you’re looking for this product to be installed in your home, our specialist installation team can help. Contact us online or visit our showroom to chat.

Additional information

Weight 1.6 kg
Dimensions 25 × 44 × 4.4 cm
Specification

10/100/1000 (RJ45) Ports 24
Uplink Ports 4 x SFP+
PoE Power Budget 400W
PoE+ Enabled Ports 802.3af/at 24
PoE+ Max Power Per Port 30W
Throughput 128 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
Switch Management cnMaestro or XMS (Cloud Management)
Switch Management Interface USB and Serial
Power Supply 100 to 240V
Acoustic Noise dBA Per Switch (Ambient Temperature) 40 dB – < 33°C, 44.3 dB – 30°C-40°C, 52 dB – > 43°C
Operating Temperature 0°C / 32°F to 50°C / 122°F
Storage Temperature -40°C / -40°F to 70°C / 158°F
Rack Size 1U

Please note: Bracket rack mount kit available separately
Dimensions Height 4.4cm / 1.75"
Width 44cm / 17.3"
Depth 25cm / 9.85"
Weight 1.6kg / 3.5375lb
Included UK power lead
